berTTos
Full Member
Karma: +24/-0
 Offline
Posts: 91
|
 |
« Reply #196 on: October 04, 2011, 07:13:48 AM »
|
|
|

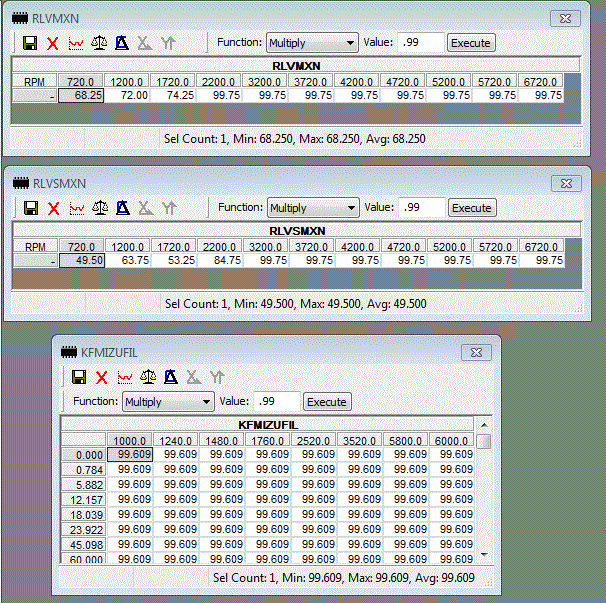

are these torque monitoring values stock? -
RLVMXN
RLVSMXN
KFMIZUFIL
|
|
|
|
« Last Edit: October 04, 2011, 08:22:45 AM by berTTos »
|
Logged
|
|
|
|
NOTORIOUS VR
Administrator
Hero Member
Karma: +58/-7
Offline
Posts: 1056
|
|
« Reply #197 on: October 04, 2011, 11:16:21 AM »
|
|
|
are these torque monitoring values stock? -
RLVMXN
RLVSMXN
KFMIZUFIL
From what I can remember yet. |
|
|
|
|
Logged
|
|
|
|
|
nyet
|
|
« Reply #198 on: October 04, 2011, 11:24:38 AM »
|
|
|
I'd scale your MAF back a bit, or possibly increase rlmax
It looks like you are hitting your spec load, and the ECU is capping something.
I'll have to dig through the FR.
|
|
|
|
|
Logged
|
|
|
|
NOTORIOUS VR
Administrator
Hero Member
Karma: +58/-7
Offline
Posts: 1056
|
|
« Reply #199 on: October 04, 2011, 05:14:47 PM »
|
|
|
Quite possible... I'm gonna try to scale back the MAF again when I have some time... I also want to try fueling via LAMFA as well...
|
|
|
|
|
Logged
|
|
|
|
|
nyet
|
|
« Reply #200 on: October 04, 2011, 06:46:42 PM »
|
|
|
Here is my decode of the calc of rl (load) based on the FR. rl = rfges - rfagr
rfagr = rfges * (250 hPa)/ps (MAF path)
rfges = pbr - pirg * fupsrl (MAF path)
pirg = Lowpass(pirgro) * fho (internal residual gas AGR)
pirgro = (select a prg based on sumod)
from PRGNM, PRGSUNM, PRG2SUNM, PRG3SUNM (dependent on rpm)
fho = (correction factor based on ambient pressure)
fupsrl = Lowpass(psrlro) * ftbr
psrlro = (select a url based on sumod)
from URLM, URLSUNM, URL2SUNM, URL3SUNM (dependent on rpm)
ftbr = (correction based on modeled combustion chamber temp)
from CWTEMPK, FAKTABGM, FWFTBRTA, FWLKFTBR
(dependent on ps, tmot, tans, etc).
pbr = ps * fpbrkds (MAF path)
fpbrkds = KFPBRK -> KFPBRKNW (based on fnwue - cam position fader)
ps = psfg+psagr (MAF path)
psfg = sum (0->psmx-(250 hPa)) (rlroh-rlw)*fvisrm
fvisrm = KISRM * ftsr * 10.13
ftsr = (tsges + 273)/273
tsges = tans (SY_TFA=false) (?IAT downstream of EGR?)
rlroh = rlfgroh (MAF path)
rlfgroh =
if (B_dk & B_lm) RLNOT (88->21 for rpm 480->2000)
if (B_negldrg | E_lkvdk | (SY_EGFE, !B_hfm, etc) rlfdkroh (speed density)
if (B_mxrlroh) rlfdkroh/fkmsdk (lambts < 1, rldkofk-rlflmroh > DDRLDKZU)
rlfdkroh = (mste+msdk)/(nmot*KUMSRL)
mste = (tank ventilation airmass in intake)
msdk = (air flow over throttle plate)
fkmsdk = integral(fkmsdkg)
rlflmroh (MAF path)
rlflmroh = (mshfms+mste)/(nmot*KUMSRL) - drllad (MAF path)
drllad =
if (B_edsl) 0
B_edsl = pvdkds>PVDKMX (dependent on rpm)
else pvdkds-lowpass(pvdkds) * KVLAD
pvdkds = MAP output after DSLGRAD/DSLOFS, max 2560
(boost pressure actual)
mshfms = MAX((mlhfmm - MLOFS) * KFKHFM, MLMIN) (MAF path)
mlhfmm = mlhfmas/anzhfma (windowed average of MLHFM) (MAF path)
mlhfmas = SUM(MLHFM)
anzhfma = counter
SY_EGFE
Bit0: HFM vorhanden (B_hfmv) 1?
Bit1: Drucksensor hinter der DK (B_dssv) 0?
Bit2: Drucksensor vor der DK (B_dslvh) 1?
Bit3: Umgebungsdrucksensor;Pu-Sensor (B_dsuv) 1?
Yea. It's a mess. I'll have to think about possible sources of that notch. If you really care, we may need to log a few more things  |
|
|
|
« Last Edit: October 04, 2011, 11:42:31 PM by nyet »
|
Logged
|
|
|
|
NOTORIOUS VR
Administrator
Hero Member
Karma: +58/-7
Offline
Posts: 1056
|
|
« Reply #201 on: October 04, 2011, 08:31:59 PM »
|
|
|
I'm down for whatever...
I need to get Setzi's logger setup and running...
Do we have a decent/default config for all the variables I should be logging?
|
|
|
|
|
Logged
|
|
|
|
|
Snow Trooper
|
|
« Reply #202 on: October 06, 2011, 02:19:55 PM »
|
|
|
why do you start with a lower WGDC, arent you on aftermarket gates?
I think your low DC during spool up is hurting.
as for that load bump, no idea.
|
|
|
|
|
Logged
|
cartoons?
6A 61 72 65 64 40 76 6C 6D 73 70 65 63
|
|
|
berTTos
Full Member
Karma: +24/-0
Offline
Posts: 91
|
|
« Reply #203 on: October 06, 2011, 04:35:51 PM »
|
|
|
are these torque monitoring values stock? -
RLVMXN
RLVSMXN
KFMIZUFIL
Try loosesning up the torque limit tables --- solved my torque intervention issues. If you loosen these up and your dip is replaced with a throttle cut and Torque Monitoring Limit Exceeded code then I bet you need to scale back your MAF.  From what I can remember yet. |
|
|
|
|
Logged
|
|
|
|
|
nyet
|
|
« Reply #204 on: October 06, 2011, 04:44:13 PM »
|
|
|
Bert, according to the FR, the output of RLVMXN/RLVSMXN only goes into KFMIOP if SY_TURBO is false! If SY_TURBO is true, rlmax goes into KFMIOP. to generate mimax with FMIVL.  I can find no other reference to RLVMXN anywhere in the FR! |
|
|
|
|
Logged
|
|
|
|
berTTos
Full Member
Karma: +24/-0
Offline
Posts: 91
|
|
« Reply #205 on: October 06, 2011, 07:59:58 PM »
|
|
|
Bert, according to the FR, the output of RLVMXN/RLVSMXN only goes into KFMIOP if SY_TURBO is false! If SY_TURBO is true, rlmax goes into KFMIOP. to generate mimax with FMIVL. I can find no other reference to RLVMXN anywhere in the FR! I noticed this too, however, it worked in my current tune. I had a weird load decrease which was eliminated by addressing those 3 tables. Another instance of black magic - I know... the appropriate variables need to be logged to confirm exactly what is going on. |
|
|
|
|
Logged
|
|
|
|
NOTORIOUS VR
Administrator
Hero Member
Karma: +58/-7
Offline
Posts: 1056
|
|
« Reply #206 on: October 13, 2011, 06:24:17 PM »
|
|
|
My next move is to underscale my MAF some more to bring my load range back to normal levels... but I will keep that in mind for sure if I am still having issues with timing dropout's and TQ intervention.
|
|
|
|
|
Logged
|
|
|
|
|
|
|
nyet
|
|
« Reply #208 on: October 18, 2011, 02:25:17 PM »
|
|
|
Timing looks fine to me.
You could probably add a bit more fuel.
Need a wideband to see if your req AFR is lining up right with actual.
|
|
|
|
|
Logged
|
|
|
|
NOTORIOUS VR
Administrator
Hero Member
Karma: +58/-7
Offline
Posts: 1056
|
|
« Reply #209 on: October 18, 2011, 02:39:07 PM »
|
|
|
yeah I'm still only using my eyes to "log" from my WBO2 gauge... for the most part it looks alright... can use some more fuel in a few places...
timing "looks" ok, but not great... seems like the load has shifted and now it's running more timing in the low/spool end and less up top towards redline... so I def need to fix that.
Also the KV are about the same as my other tunes but KR is higher which I believe is tune related (not necessarily actual knock).
Either way looks to be a promising start... definitely needs more messaging...
|
|
|
|
|
